The WaGuns 10/22 Rifle Pt2

See Part 1 here

Next we will work on the bolt. The stock bolts have a couple of issues.
One is that the parts are not finished that well, to save money on labor the parts come out of the cutter and are installed with minimal deburring. The second issue, is that the firing pin has some play in it that can cause it to hit the rim of the cartridge a little high, causing a miss-fire or poor precision. The bolt has a notch where the factory hits it with a chisel to close the channel, keeping the firing pin for lifting too much, but this does not do enough, so we will drill the bolt and insert a pin

Before disassembling the bolt I measured the head space, it measured out at .044" which is perfect, optimal is .044 - .047".


The 1/16" stainless roll pin and 1/16" Hi-Roc drill bit

Setting up the drill press

I didn't not drill all the way through, no need to and the last time I did that I broke the $7 drill bit, the 10/22 bolt is case hardened and breaking through can cause a bind when you get to the outer layer of hardened material.

Test fit of the firing pin

File the roll pin flat

I polished the sides, top and bottom of the firing pin, extractor and extractor plunger

I paid special attention to the front edge of the extractor, to help with feeding the new cartridges into the chamber

and the top of the firing pin where it may contact the new roll pin

I then polished the side to prepare it for the jeweling

This is what I am going to use to jewel the bolt (also known as "engine turning" or "damascusing"), a stainless steel brush from my Dremel that has the bristles constrained by a piece of shrink tubing

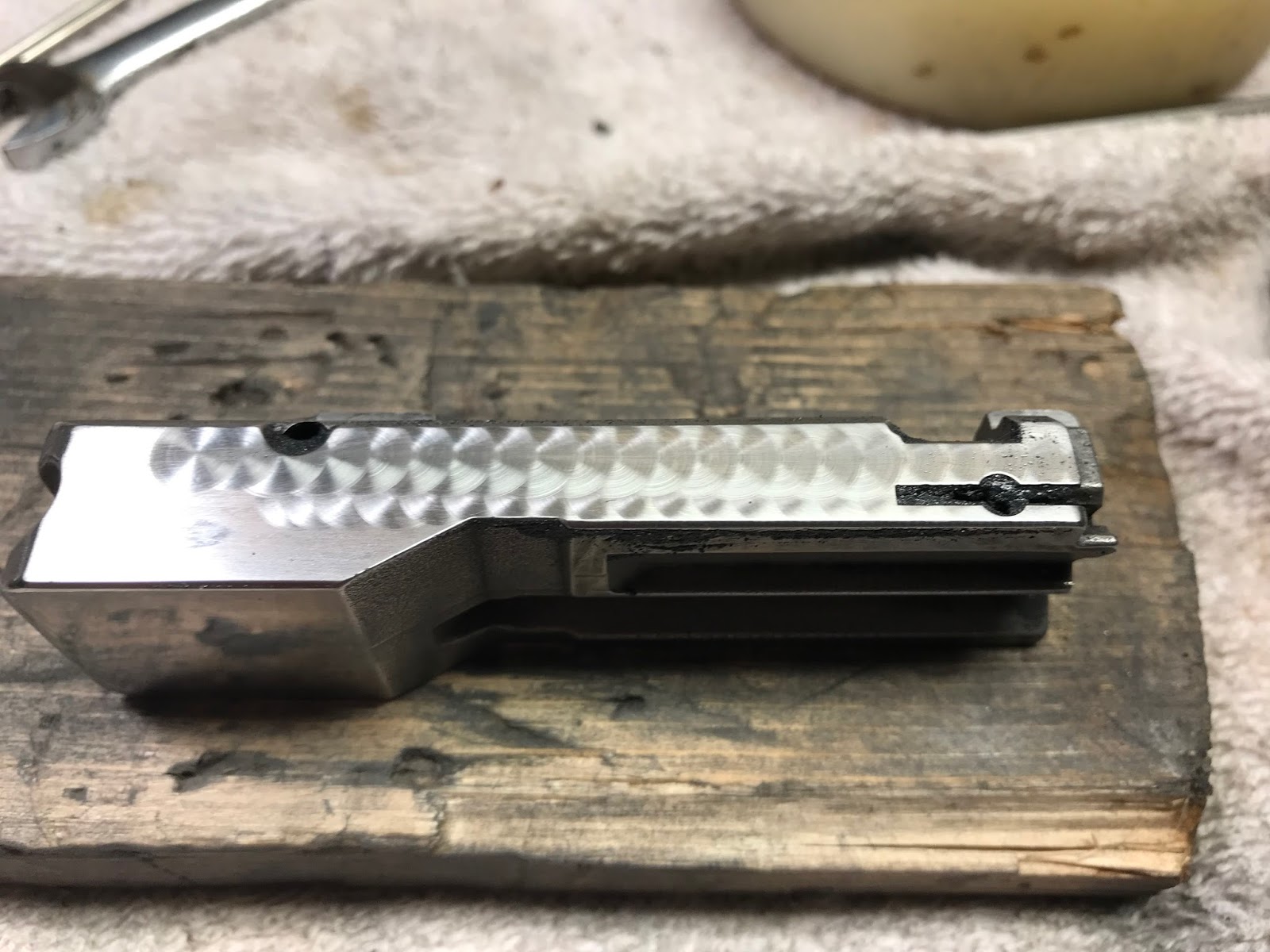

Making swirls in the valve grinding compound

I replaced the roll pin with a new stainless steel one

oiled, assembled and ready for duty

Next we go to work on the barrel, it is new, but has some dings. I wanted to provide a high polish blued finish, something the factory never provided.

The dinged up area got sanded with 100 grit, working my way up to 400 grit, then I sanded the entire barrel with the 400, working my way up to 2500 grit and finishing with fine Crocus Cloth

Close up of the polished surface

Here it is after bluing

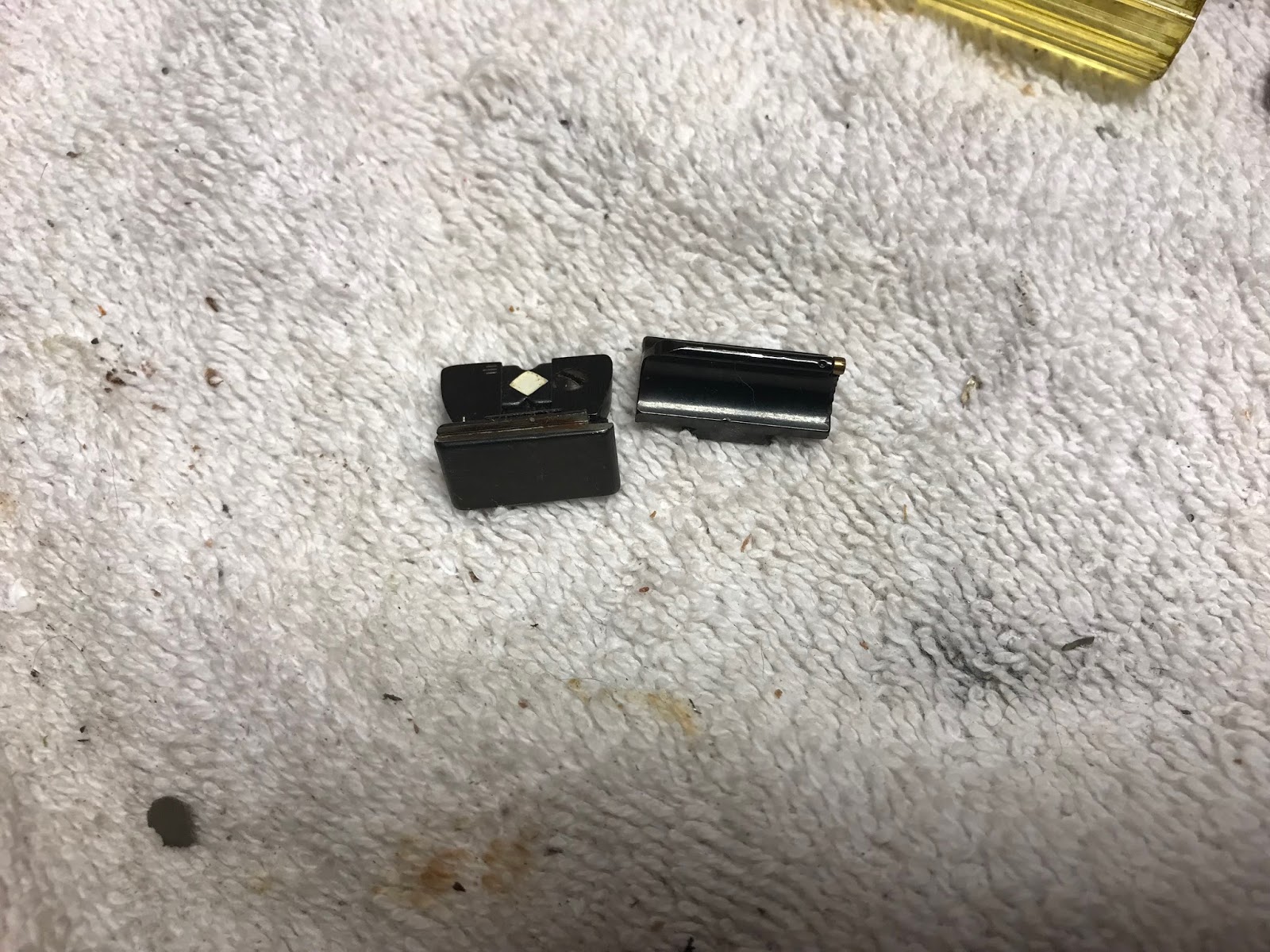

I had a spare front sight, the rear sight might not be from a 10/22 or maybe it is from an older one, it looks a little different.
