The Winchester Model 70 Project Part 4

If you missed the earlier posts on this project, click on the links below:

Part 1
Part 2
Part 3

The parts have been blued



Time to reassemble this rifle, I'll start with the bolt.



Safety is installed for the third time...it is like anything else, by the time you are done installing wrong several times you are an expert


Firing pin installed


I polished the bluing off the bolt where it shows through the receiver


Extractor installed


The filler plugs on the side of the receiver get some Uncle Mikes thread locker and screwed in flush



next I install the threaded post for the forward take down screw, I always grease these, two reasons: it goes on easier and this is going to be buried inside the stock, we want to prevent any moisture from getting in there



Trigger, sear, ejector and other parts assembled


I cleaned the front sight in acetone before applying some B-C Perma Blue cold bluing.


The reason we couldn't blue this with the rest of the parts is the bead on the front is aluminum and aluminum and bluing salts don't mix....the aluminum disappears like a Clinton witness.....


Installed, it is getting covered up by the sight hood, but I wanted to touch it up anyway



Rear sight is next



Then I assemble the floor plate hinge



then install the plunger and spring in the trigger guard


The next to the last step is the take-down screws, this gun has four of them (one is under the floor plate)


The last step is the application of Renaissance wax

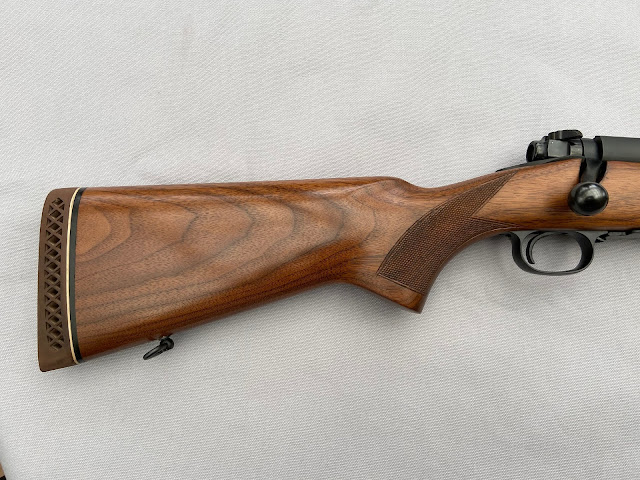

Finished! If you are wondering what happened with the scope, I am still working on it. I think I can refinish it if I can get it completely disassembled.






















I somehow managed to put a small scratch in the receiver....it can be fixed with some cold bluing

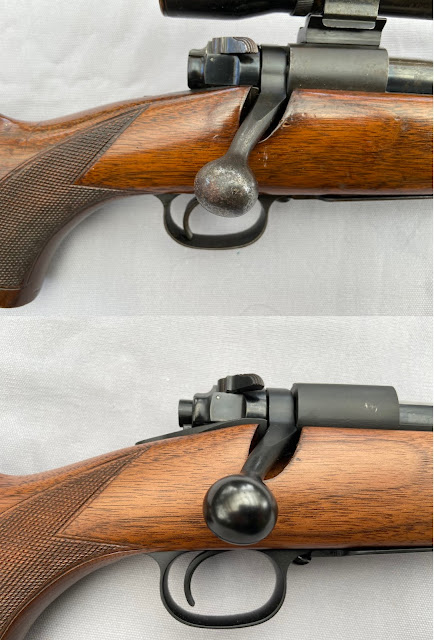

Before and after















On to the next project!
