Sunday, May 29, 2016

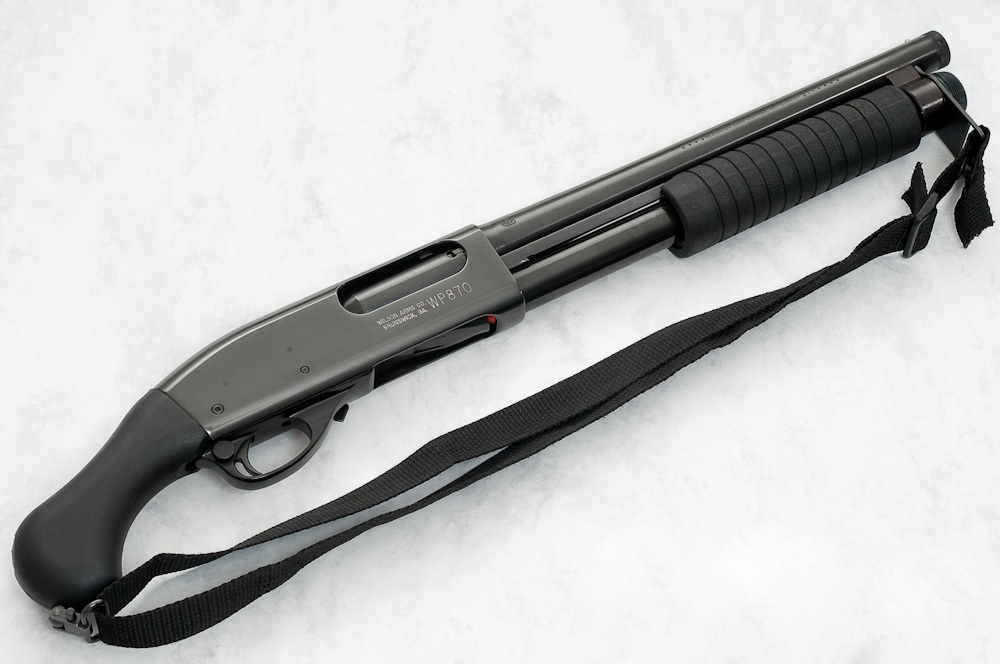

May Gun Porn






















These pictures were found freely on the world wide web and are used under the guidelines of Fair Use, per Title 17 of the U.S. Code.
If you own the copyright to any of these images and wish them to be credited or removed, please contact me immediately.

Wednesday, May 25, 2016

A Custom Bayonet?


I found a stainless steel, Chinese made Bayonet at a swap meet, it was missing the handle, but otherwise looked GTG.

I paid $3 for it and figured I could make a set of handles from wood. Then maybe wrap it in tactical black paracord..... like this one:
photo courtesy of AR15.com

Here is the Chinese Bayonet next to a military issue M7

Some may think bayonets may be from a by-gone era when hand to hand combat was still a reality of war, but I like 'em.

One of the reasons I like them is because the Hoplophobes hate them....they may not even know why they hate them...(see my blog post "Something for the Hoplophobes"

Before starting the project I test fitted the bayonet on my 10-22....wouldn't you know it, it didn't fit....it figures.
The Chinese person who made this probably was reading the wrong specs or the translation juxtaposed an 8 for a 6 or something.

You can see the hole is way too small for a mil-spec AR bird cage flash hider.
So the first step was to open the hole, I used a Craftsman 5/8 spark plug socket as my guide/gauge. It would slide in with a "slip fit" in my M-7 Bayonet. This way I wouldn't have to keep trying it on the gun.


I used a step drill, a die grinder, rat tail file and sand paper to open it up
test fit on the 10-22
I cut some pieces of this blond English Walnut that I paid $0.50 for at a gun show

I roughed up the surfaces and mixed up some JB Clear Weld epoxy and glued the first side on
For the bolts, I used these brass 1/8" bolts I got from a project at work. Rather than insert nuts, I will just epoxy them in place and cut the heads off.
 After the epoxy dried it was time to start making saw dust. Looking back I should have inlaid the handle to prevent the gap. I figured I would fill the gap with a wood/epoxy filler.

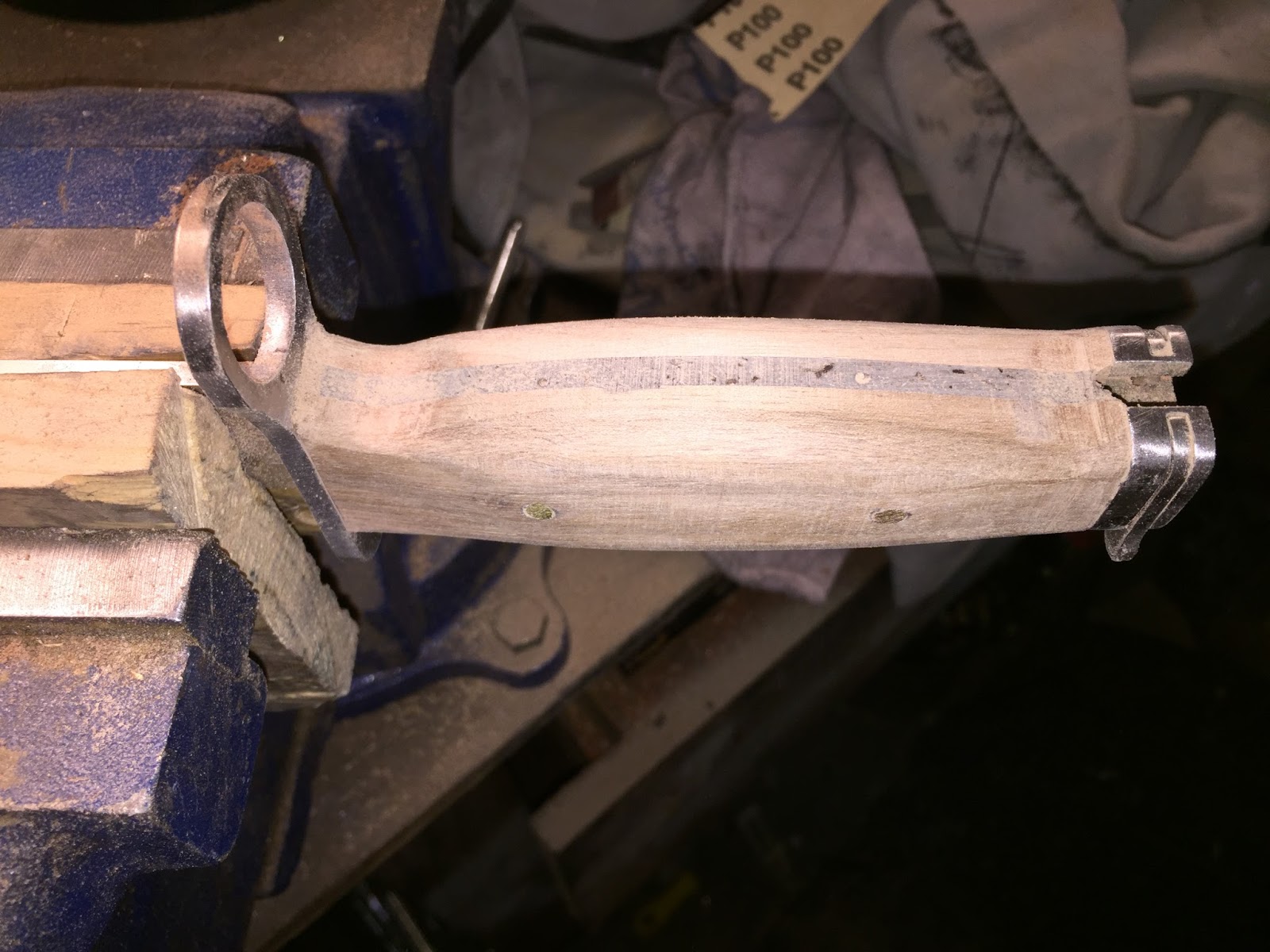

I cut the excess pieces of the brass bolts and started taking away the wood with the rasp. I saved the saw dust and shavings to fill the gap.
I plan on mimicking the profile of the M7 bayonet handle, it is fat in the middle and skinnier at the ends.
 I mixed the saw dust/shavings with the JB Clear Weld epoxy and filled the gap










A good couple of coats of Minwax spray Spar Urethane and the bayonet is finished...and less than $5 invested






Friday, May 20, 2016

George Jennings and The Ring of Fire


The story of one of the most prolific gun makers in American history begins, ironically enough,  in Washington D.C..

Leftist lawmakers, anxious to use the deaths of Martin Luther King Jr. and Robert Kennedy to their benefit, proposed legislation to restrict the God given, Constitutionally protected rights of Americans.

Their legislation was called the Gun Control Act of 1968. It was passed by the Democrats who held a majority in the House and Senate and it was signed into law by Democrat President Lyndon Johnson.
Among the things now prohibited by the GCA of '68 was the importation of small handguns.

While the importation was made illegal, the domestic production of the same small handguns remained completely legal.

Little did these leftists know, the closing of one door opened another one.

When the 1968 Gun Control Act put a kibosh on the importation of small pistols , it left a rather large void in the marketplace. People of lesser means found these little imported guns to be just what they needed to protect their places and persons.
These guns were given the nick name "Saturday Night Specials" by the leftist media (see my write up here).

Meanwhile in Los Angeles a gun dealer was complaining to his friend, a Mr. George Jennings, about the lack of sales since the GCA of '68 was passed. Before the law the dealer was selling close to 500 of these small guns per month.

George, who was a machinist by trade, making parts for the aerospace industry in Southern California, had an idea. What if he could replicate one of those formerly imported guns? Using his skills he could fill the vacuum created by the leftist lawmakers and get rich while doing it.

George needed a design, and since the concept was to replace a gun no longer imported, he used one or more of them for inspiration. Rumor has it the gun that inspired his design was the Reck P8.




In 1955 West German Karl Arndt Reck began making an affordable little pocket pistol in .25 ACP (6.35mm).

The company was called Karl Arndt Reck Sportwaffenfabrik (German for sporting weapons maker). The gun was sold throughout Europe and imported into the U.S. under the trade names "LA Fury" and "Chicago Cub" (I wonder where those names come from?). The grips would feature an "LA" or a "CC" monogram.


The Reck was not the only gun with this design that was a popular import. The Wischo-KG Erlangen model 11 is a good example, it is also closer to what Jennings came up with.



Many of the pocket pistols made in West Germany, Italy and Spain that were destined for U.S. buyers were copies of each other. I could be that the Wischo was a copy of the Reck, or it may have even been built by Reck and brand-labeled.

In 1970 George started the Raven Arms Co., building a simplified copy of the Reck using parts cast from a zinc alloy, called Zamak (or Zamac).
Zamak, which gets its name from the alloy Zinc, Aluminum, Magnesium and Copper (Kupfer in German), is not your typical pot metal. The alloy is mostly zinc (99+%), which is similar to magnesium and slightly less dense than iron.

Zamak is actually very well suited to this type of manufacturing. One notable advantage of zinc construction: no rust.

He called his .25 ACP pistol the "P-25".


The design was pretty straight forward, using a fixed barrel, a blow back operation and a striker released by a stiff single action trigger. Very little machining was needed to complete the pistols, which helped keep the price low and the profits high.


The Raven MP-25 started a revolution of sorts. The guns were selling so fast and that he needed more help.

In 1972 his son Bruce began working at the company, learning all the aspects of producing the firearm. His sister Gail also went to work at Raven as did some friends and other family members.

Bruce left Raven Arms in 1978 to start his own operation: Jennings Arms Co. Bruce used the same production techniques but copied the look and some features of the Walther PPK.

Bruce was also responsible (at least in part) for the Calwestco brand name and Bryco Arms (named for Bruce's son Bryan).

In 1982 George Jennings' daughter Gail and son-in-law, Jim Davis left Raven to start Davis Industries, just like Bruce they tweaked the design of the pistol but kept the same construction techniques and business model.

In 1989 George Jennings' nephew, Steven Jennings, started Sundance Industries. That same year a friend of Bruce Jennings started his own operation to produce pocket pistols called Lorcin Engineering.

In 1991 The Raven Arms factory burned to the ground. As a result George retired and sold the rights and designs to a new start-up company called Phoenix Arms (appropriate name don't ya think?).
Phoenix Arms is owned by decedents of George, former employees of George and George's ex-wife.

By 1993 these companies were responsible for nearly half of the handgun production in the U.S. (more than 900,000 in 1993 alone).

So where did the name "Ring of Fire" come from? The term Ring of Fire was originally applied to the volcanic subduction zone surrounding the Pacific Ocean. The volcanoes create a circular ring and because they belch fire...well you get the picture.

The term was appropriated by a Hoplophobic Doctor from California to describe the multitude of firearms makers within one hour of downtown Los Angeles. It seems this Doctor thought the small, affordable guns were the source of violence in his home town and he wanted to end sales of these "evil" weapons.

Some of these companies have gone out of business, some were sued into bankruptcy, some were forced to move by leftist civic leaders and others collapsed from within.

Here is a list of the gun companies tied to George Jennings:

Raven Arms: 1970 to 1991 - George Jennings
The Raven MP-25



Jennings Firearms: 1978 to 1985 - Bruce Jennings
Calwestco: 1985 to 1991

 The Jennings J-22




Davis Industries: 1982 to 1999 - Gail (Jennings) & husband Jim Davis

The Davis P-32




Sedco Industries: 1987 to 1989 - John Davis (brother of Jim Davis)

The Sedco SP-22


Lorcin Engineering: 1989 to 1999 - Jim Waldorf, friend of Bruce Jennings

The Lorcin L25


Sundance Industries: 1989 to 2002 - Steven Jennings (George Jennings' Nephew)

The Sundance Boa


Bryco Arms: 1991 to 2003 - Janice Jennings (wife/ex-wife of Bruce Jennings)

The Bryco 38



Phoenix Arms: 1992 to current - successor to Raven Arms, owned by Jennings and Davis family members.

The Phoenix Arms Raven model


Republic Arms: 1998 - Jim Davis, after the closing of Davis Industries

The Patriot 45

 Standard Arms: 1999 - Jim Waldorf (Lorcin Eng.)

The SA 9

Talon Industries: 2000 to 2001 - Jim Waldorf (Lorcin Eng.)

The T-100


Cobra Firearms: 2001 to current - successor to Davis Industries
The Cobra CA-380



Jimenez Arms: 2004 to current -  successor to Bryco/Calwestco/Jennings

The JA-22






Of the companies above only Phoenix, Jimenez and Cobra still exist.

There were other companies that were made within an hour of LA, but may not included in the "Ring of Fire", maybe because of their price point or maybe because their production numbers were low enough to keep them "under the radar", these include Arcadia Machine & Tool (AMT), Accu-Tek, A.J. Ordnance, Weatherby and others
























References
Wikipedia
PBS
Little Gun
Not Purfect
Ring of Fire Saturday Night Special
BATF
Zamak Guns
