Thursday, July 30, 2015

HEXMAG Magazine review

One of the great things about the internet age is that we can get information on products and services from real people who have actually experienced what you are interested in.
Our local gun forum is a great resource for product reviews.

On of our members recently purchased some AR Rifle HEXMAGs and wrote a short review of them. I asked him If I could use his review for my blog and he agreed.
His name is Drew, he is an avid shooter and a combat veteran, (thanks again for your service!) so his word is as good as it gets in my book, plus it was a bit humorous....

You cannot help but compare the HEXMAG HXmag to the Magpul PMag, the similarities are quite conspicuous.

They even came from the same area (HEXMAG is located in Loveland, CO, where as Magpul was formally located in Boulder, just 45 min apart).

As with the Pmag they are made of a reinforced polymer and come with a limited lifetime replacement warranty....this is from the HEXMAG website


 The name HEXMAG comes from the hexagonal reliefs cut into the sides of the magazine
The HX magazines come in the three most popular colors: Black, Olive Drab Green and Flat Dark Earth.



For those who want a little extra "gription" they offer a kit with non-skid hexagons made from grip tape to fit into the recesses.

Unique is the the option for different colored followers and base plates. They call this the "HEXID" system.
It allows users to load different color magazines with different ammo or for different guns.



 of course changing the springs/followers/base plates is a simple task requiring no tools. Dis-assembly is identical to a Pmag (except you can use your finger to press the button on the base plate).




 HEXMAG also offers a simple way to comply with the unconstitutional magazine limits....if you are one of the unfortunate living behind enemy lines.....

The pictures show the two Flat Dark Earth HX Mags with the standard orange followers that were purchased, they are next to the comparable FDE Pmags. Again no one seems capable of matching Magpul's FDE color...where do they get the dye from? A hair New Jersey hair salon? A volcanic mud pit in Italy? A sewage treatment plant?

 One commenter made the observation that the HX Mags are not compatible with the a stripper clip spoon or a StripLula, not sure if that matters to most people, but I thought I would mention it.
You can see from the pictures the HX mags are slightly shorter and slimmer.

 So on to the review, these are the words of Drew, I simply edited the words to be a little less offensive.....:). The author's words are italicized.



The Pmags have a habit of over loading by one. So, a total of 31 rounds in the magazine.
Is it really a problem? No.
Is it that big of a deal? No.
Is it annoying to my OCD? F&*k yes.
The Hexmags only allow 30 rounds in their 30 round magazines. So, no over loading.
My OCD is pleased.


Loading of the Hexmag was smooth.
The follower is no-tilt and seems a little more robust than the Pmag, but that is just in my eyes.


Both Hexmags fed smoothly and reliably in my AR and also dropped free when the magazine release was pushed.
I did not go full retard and run the magazines over with a truck.
If you ask me, that test is f*&king pointless and only Jerry, the inbred, retarded hillbilly gives a sh!t about that.
I did, however drop both the Pmag and Hexmag, loaded, feed lips down, from a height of 8 feet onto granite paving stones.
Neither magazine ejected any rounds on impact. Which surprised me, somewhat.
Both became slightly scuffed. Who the f*&k cares?
The feed lips remained within serviceable specs on both, with the Pmag bending in slightly more than the Hexmag.
The feed lips on the Hexmag are slightly thicker and more robust.
Whether that is really something special or a non factor, I cannot say at this point.


All in all I think these will be fine magazines.
I ordered an additional 20 magazines before writing this from Wise Tactical.
At $11.99 per, and only $3.95 flat rate shipping I think it's a pretty fair deal.
Slightly cheaper than Pmags and the different color offerings from each company seem close to the same hue.
Something I kind of like about them is the HexID system with the colored dot in the base plate and the ability to disassemble the magazine without the need of tools.
They are minor things, but handy nonetheless.


A reader asked if the Hexmag spring was interchangeable with the Magpul Pmag. The question peaked my curiosity so I took them both apart and compared the springs. They are virtually identical. The only difference I could see was the final wrap on the bottom extended a little farther on the Pmag, but that would not affect it fitting the Hexmag at all.


References
WAGUNS
HEXMAG
Wise Tactical





Sunday, July 26, 2015

Ruger Old Model Blackhawk Project part 7


This is part 7 of the series, if you missed the others you can find them here:
parts one, two, three, four, five & six





Back to working the grip panels. Once fitted and shaped, I then moved to a 1/2 round file to begin contouring the wood


Getting close, the trick is to mimic the Ruger factory grips in shape and profile, but also making sure both sides are identical



It might be hard to tell, but progress is being made, once close I removed the tape, then I switched to sand paper and sanded the wood and metal as one

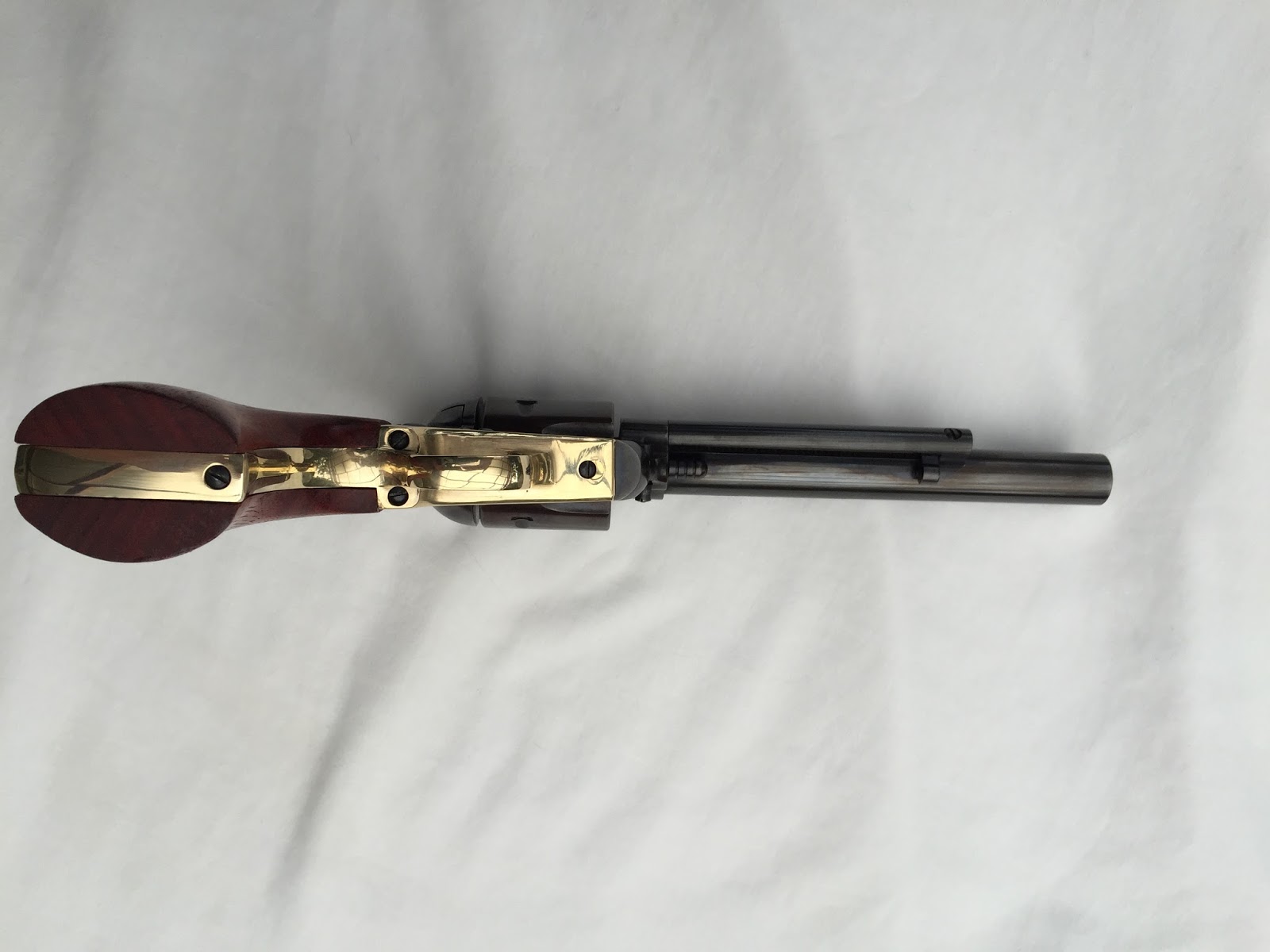

 I had to decide what to do with the bottom of the grips. I could leave them flat or chamfer them like the factory ones
 I decided to leave them flat, like the Colt's.

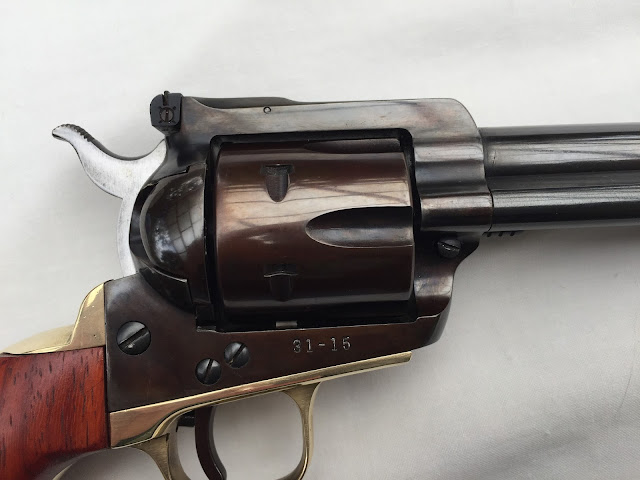

Here they are done, 600 grit finish, they are not perfect, but they feel amazing in the hand





 Cleaned with acetone
I decided to try a different finish on these grips. I have heard some great things about Minwax Antique Oil Finish and decided to give it a try (especially after seeing the results some have gotten)


1st coat of Minwax oil finish, rubbed in hard, let it set up for 10 min, then polish with lint free cotton (old t-shirt)





The gun will be completely dis-assembled and cleaned, the sanding dust got into every nook and cranny.


I then sanded and polished all the scratches out of the brass grip frame


final coat, a quick and gentle rub with 0000 steel wool gets them ready for duty.



And that brings a close to this project....time to get to work on the next one


















Friday, July 24, 2015

Ruger Old Model Blackhawk Project part 6

I guess I should have called this the "Never Ending Project".

see parts one, two, three, four & five

So now that the revolver is put together and works, I decided I wanted to adapt this 1851 Colt grip frame that I bought on ebay for a pittance to the Blackhawk.

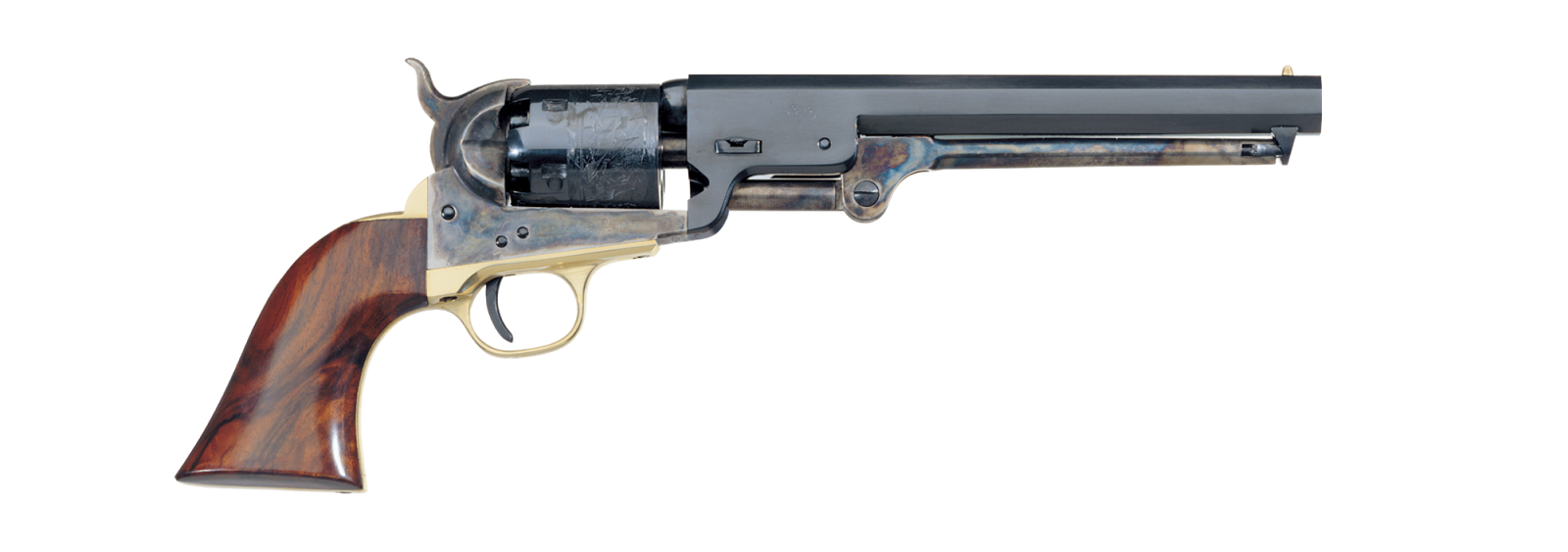

  This is what an 1851 Colt Navy Model looks like (this is an Uberti reproduction, most likely the source of my grip frame)


You can see the difference in profile and fit here, a New Model frame with an 1860 grip frame and an unmodified old model. The 1860 is larger, but has the same profile


I cannot claim credit for this idea, a gunsmith by the name of Sharps40 did this same modification on a New Model Blackhawk. See the write up here
You can see in the picture above that the boss for the main spring/strut is bolted to where the old Colt leaf spring was mounted, (see the picture below)



The process involved:
  • making clearance for the Ruger hammer & trigger
  • cutting a channel for the trigger return spring
  • drilling holes for the trigger return spring pivot and perch locations
  • removing some metal for clearance for the main spring
  • building a mount for the main strut/spring boss
  • drilling a hole in the front trigger guard for the bolt stop spring & plunger
  • drilling and installing a pin to locate the grips
  • making a custom set of grips from blood wood
Putting this brass grip frame on an old model Blackhawk would be easier and would involve the items above except the hole for the bolt stop plunger would not be needed and the trigger return spring sits in a little hole in the trigger guard, which can be drilled from the front.

We need to add a hole to the back of the trigger slot on the brass frame like the one on the factory aluminum grip frame on the left
I enlisted the help of my friend Survivor45, to drill the necessary hole and fill and re-drill the front screw hole

Here he is setting up the fixture for drilling the hole


This picture shows the angle at which the hole must be drilled (the same way the Ruger factory drilled the holes)







The screw hole in front of the trigger guard had to be filled in. This involved:
  • Threading the old hole to accept a larger screw
  • The screw was silver soldered in place
  • A new hole was drilled and counter-sunk
Part of the old screw was left standing on the top, this fits in the recess in the Ruger frame and helps align the trigger guard portion of the grip frame.



Here I am filing the trigger slot to make room for the trigger and allow the holes in the Colt grip frame to line up with the Ruger frame. I needed more room side to side and at the front of the slot.
The next step was to identify the location and angle of the main strut boss and find some sturdy metal in which to construct it from.


I measured the angle of the main strut on my New Model Single Six. These measurements aren't perfect, but it will get me close to mimicking the factory intended design



I measure the amount of strut protruding when the hammer is cocked, I had about 7/16 of an inch
I plan on building the main strut boss out of this unassuming piece of scrap metal

I also used my Dremel to make clearance for the main strut/spring assembly in the trigger guard section where the strut passes the apex of the curve
 And on the inner sides of the back strap (where the strut meets the hammer)

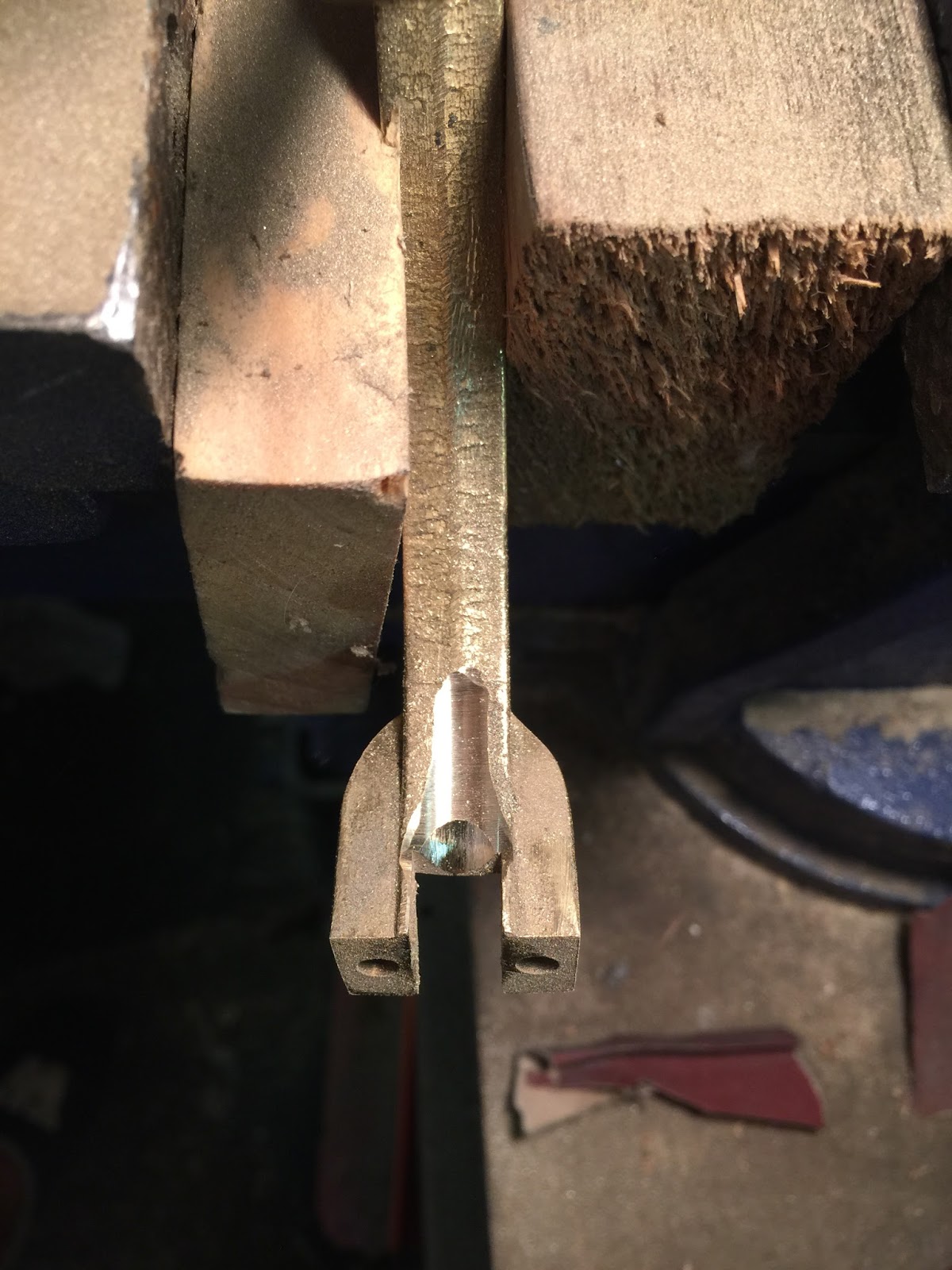

I cut and filed away everything that didn't look like a main spring/strut boss. After numerous modifications (bending and opening up the slot), this is what I ended up with. I will clean up the edges, polish and blue it later

Trial fitting, I needed to bend it more
Testing the operation. I installed the trigger return spring & plunger, the pawl spring & plunger and all screws....the only thing missing is the grip panels


Everything is copacetic.....
Two things I noticed: 1. The feel of the grip is better than the original Ruger. 2. Something, due to the fit, has taken up all the slop in the action, the gun feels like a brand new revolver.



I marked the grip frame so I could match to the Ruger frame. You can see that the Colt grip frame is slightly proud. I'll have to do this off the gun so as not to risk damaging the finish.



When it comes to the grip panels I had some options. I could buy a grip set for an 1860 Army clone (new or used), split them down the middle and inlet them for my application



Or I could buy and modify this semi-inletted one from Dixie Gun Works


Or I could just make my own...I'm thinking bloodwood, just like the ones Sharps40 made
I have a block of bloodwood (approx 4 x 4 x 4")


I ordered another one of these grip screw sets from Gun Parts Corp. (same one I used on the Vaquero Bird's Head grips)

Time to make templates for the grip panels, one thing to be wary of is that the top corner where the grip panels meet the Ruger frame, is not a perfect 90 degree corner. I see a lot of grips where a gap is left in this location due to poor fitting. I will try to avoid that
Time for some math....(I know I hate math...) anyway, if we don't plan out the thickness of the grips, we won't know how much material we need to cut and how long of a locating dowel we can use.


I measured the Colt brass grip frame and compared with the stock Ruger XR3-RED
The Colt frame measured approx. .442", the Ruger XR3-Red is about .513" thick a difference of .071"

Next I measured the Ruger grip frame with the factory grips attached (at the widest spot, the heel)

They measured out to roughly 1.542" thick. I like the feel of a palm filling grip, and these factory Ruger grips feel pretty good, so I will attempt to make my grips (including the frame) about the same width.

I cut 3/4" wide pieces for the grip panels, I will file/sand them down to get close to the 1.5" overall thickness.
I will fit the top corner 1st, then drill for the locating pin, then fit them to the grip frame

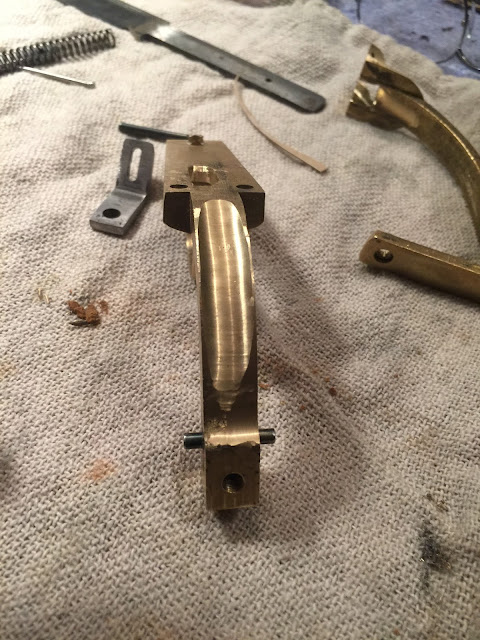

Before fitting the grip panels I needed to install a dowel/locating pin to keep the grips from moving.


The Ruger's grip locating pin is about .80" wide, I found both 3/4" (.75) and 1" roll pins at the store. I purchased the 1.0" wide ones (1/8 diameter).
The protrusion on the Ruger pin is about .1435" (.80-.513=.287/2=.1435). So I drilled a 1/8" hole, pounded in the 1" roll pin and filed it to .144" protrusion on each side.

I found the rear edge of the trigger frame stuck out a little more than the pistols frame. A small file cleaned it up
Fitting the corners first, hoping to avoid any gaps between wood and metal.

I then drilled the 1/8" holes for the dowel pin and the grip screw

I cut the grips close to their final dimension



The screw that came with the escutcheon kit was too short, I found these brass ones at the local nut & bolt monger, but the head would not fit in the escutcheon recess

I taped up the threads and chucked it into my drill, a file supplied the necessary friction
Test fit before using the belt sander to pare down the wood, I installed the screw head recess on the right side to match the way stock Ruger grips are.

I wrapped the metal parts in tape to protect them and let me know when I was close




OK, this post is getting a bit long. I will save the finishing of the grips, the polishing of the brass grip frame and the re-bluing of the cylinder for part 7
